اسپیکر مانیتورینگ ADAM A77X

Features:

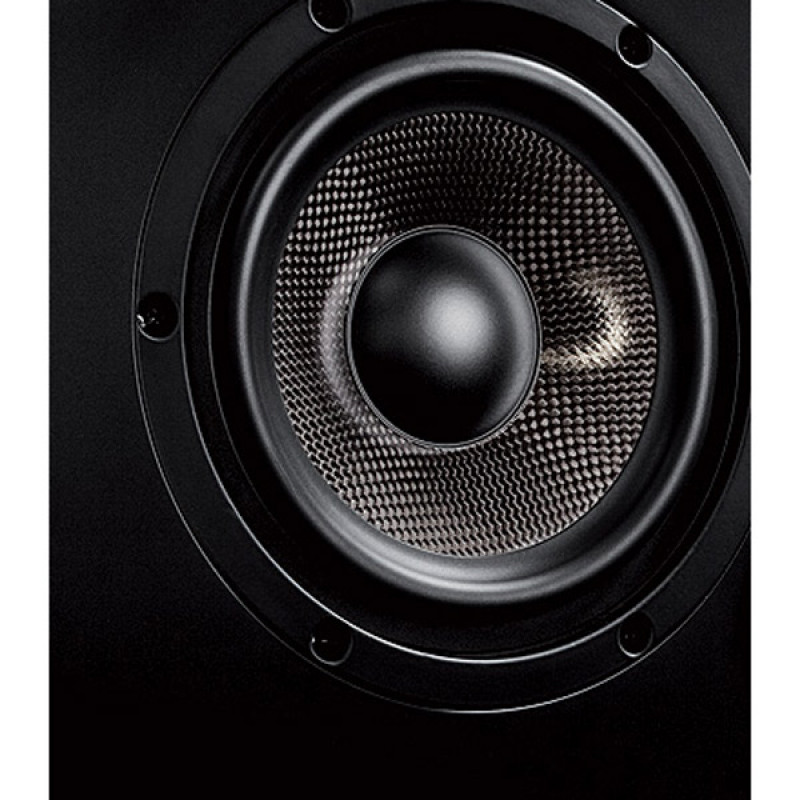

Subwoofer

• Number: 1 / 1
• Basket Ø: 7″ (175 mm) / 7″ (175 mm)
• Voice coil Ø: 1.5″ (38 mm) / 1.5″ (38 mm)
• Cone material: Carbon / rohacell / glass

Tweeter

• Number: 1
• Type: X-ART
• Diaphragm area: 4 inch² (2420 mm²)
• Equiv. Diaphragm Ø: 2″ (56 mm)
• Velocity transform ratio: 4:1
• Diaphragm weight: 0.17 g

Built-in Amplifiers

• Subwoofer: 1
• Type: PWM
• Amp. power RMS / music: 100 W / 150 W
• Subwoofer: 1
• Type: PWM
• Amp. power RMS / music: 100 W / 150 W
• Tweeter: 1
• Type: A/B
• Amp. power RMS / music: 50 W / 75 W

Control Panel

• Input Sensitivity: -∞ to +14 dB
• High shelve > 5 kHz: ±6 dB
• Low shelve < 300 Hz: ±6 dB
• Tweeter gain: ±4 dB

Input Connectors

• Analog: XLR / RCA
• Location: Rear

General Data

• Panel: Front
• Frequency response: 38 Hz – 50 kHz
• THD 90dB/1m > 100 Hz: ≤0.5 %
• Long term output: ≥114 dB
• Max. peak: ≥122 dB
• Crossover frequencies: 400 / 3000 Hz
• Input impedance: 30 KOhm
• Weight: 28.2 lb (12,8 kg)
• Magnetically shielded: Optional
• Height x Width x Depth: 9.5″ (235 mm) x 21″ (530 mm) x 11″ (280 mm)
• Warranty: 5 Years
